Intelligent Fixture Wizard

Information about setting up DMX intelligent fixture display elements.

Required Materials

Vixen’s support for intelligent fixtures (DMX moving heads) is based on giving Vixen detailed knowledge about your hardware. To perform this data entry you are going to need the User manual for your fixture that lists the functions your fixture supports and what channel(s) are associated with those functions.

Time Commitment

Expect to spend ~20 minutes defining your fixture profile.

Background

The Intelligent Fixture Wizard has two purposes:

  1. It creates fixture profiles. The fixture profile contains what functions the fixture supports and what channels are used for those functions.
  2. It creates Intelligent Fixture display elements and adds them to the display.

How to Start

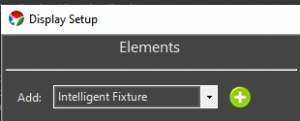

The Intelligent Fixture Wizard can be activated from the Display Setup. Select Intelligent Fixture from the Elements drop down and then select the Plus button.

How to Start

Video Tutorials

Select Profile

Information about selecting or creating a DMX intelligent fixture profile.

Edit Functions

Information about editing intelligent fixture functions.

Edit Channels

Information about editing channels associated with the intelligent fixture.

Color Support

Information about selecting color support for the intelligent fixture.

Automation

Information about configuring intelligent fixture automation options.

Dimming Curves

Information about optionally configuring dimming curves for the intelligent fixture light outputs.

Grouping

Information about controlling how many fixtures are created and if they are grouped.

Summary

Summary information about the intelligent fixtures about to be created.
